Villeroy & Boch Villeroy And Boch ViConnect Dual Flush Concealed Cistern For Wall Hung Pan

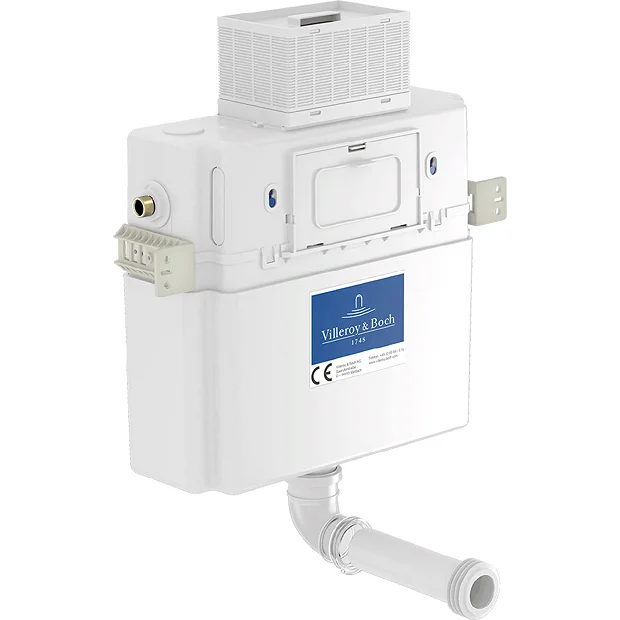

Villeroy and Boch ViConnect Dual Flush Concealed Cistern for Wall Hung Pan – 92093300

The Villeroy & Boch ViConnect Dual Flush Concealed Cistern is suitable for use with all wall hung toilet pans. The concealed cistern is insulated to prevent condensation, reducing the need for maintenance. As standard, the dual flush cistern provides a six or three litre option, but this can be adjusted to use even less water if desired.

Product Details

• Brand: Villeroy and Boch
• Material: Plastic
• Height: 545mm
• Width: 460mm
• Depth: 155mm
• For wall hung pans
• For installation in furniture height 820 mm with CC122 for operation from above
• Easy connection to flush plate via flexible cables with bayonet joint
• With fixing brackets
• Without fastening materials
• Without attachment and waste bend for wall-mounted toilet
• With filling valve type AG (air gap) WRAS compliant
• Front/top operated
• Button function transmitted to drain fitting via flexible cables
• Connection to flush plate via bayonet joint
• Condensation water insulated flush-mounted cistern (CC-122- S-F0-2V-2C)
• With dual-flush (7.5-4.5 l / 4-2 l)
• Factory setting 6/3 l
• Button function transmitted to drain fitting via flexible cables
• Flushing pipe bend with protection cap
• Filling valve Noise Class I
• 2-part angle valve connection set R1/2
• Protection box for access opening can be cut to size
• Certification marks for concealed cistern: Noise Class I
• EN 14055EN 14055

10 Year Guarantee

All measurements are approximate

Images are for illustrative purposes only

Please note: Flush plate sold separately.
