Geberit Duofix WC Furniture Cistern Frame For Wall Hung WC

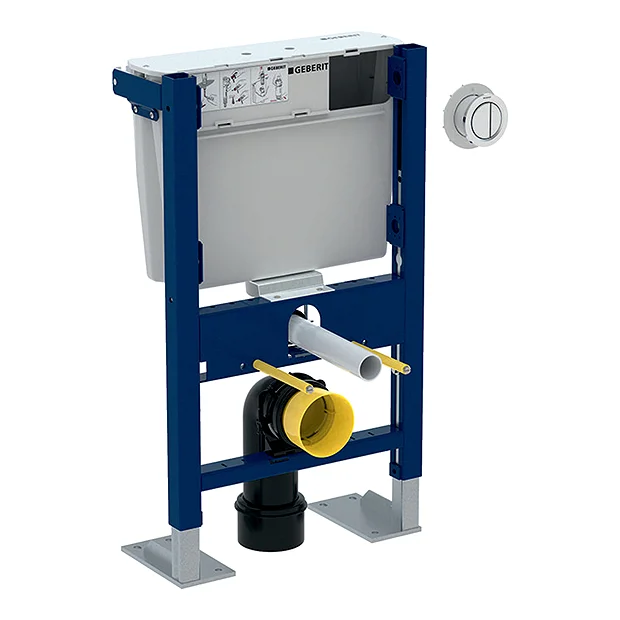

Geberit Duofix frame for wall-hung WC, 79cm, with low-height concealed cistern, remote flush actuation type 01

Geberit wall-hung systems are installed behind the wall, giving your bathroom more space and a simple, sleek design. The system consists of a cistern and installation frame that integrates the cistern into the wall so that it saves space.

Combine the Geberit wall-hung system with your choice of wall-hung ceramic to complete the look. It comes complete with Pneumatic dual flush button, pre wall brackets and WC bend.

Features:

• Dual flush with volume adjustment options to help save water
• Front and top access
• Compatible with all Geberit flush buttons
• Guaranteed availability of function maintaining spare parts for 25 years
• Flush pipe connected to cistern with compression fitting
• Designed specifically for installation in furniture only

Application Purposes:

• For drywall construction
• For installation in bathroom furniture
• For installation in part-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0–20cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20cm
• With large foot plates for raised power supply in floors
• Connection bend can be mounted without tools at different depths, adjustable range 45mm
• Fastening for connection bend, sound-absorbing
• Flush actuation pneumatic
• Flush pipe connection with compression joint
• Water supply connection on the bottom left
• Water supply connection 1/2”

Technical Data:

• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25°C
• Flush volume, factory setting 5.8 and 3l
• What’s Included:

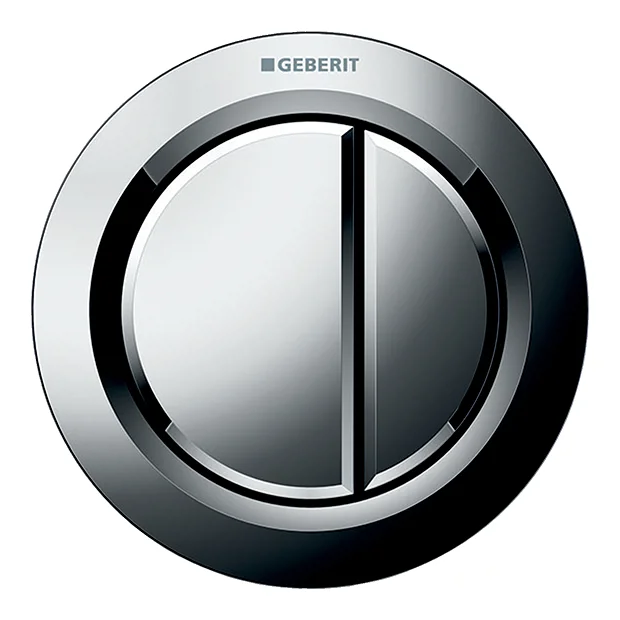

• Pneumatic dual-flush actuator
• Pneumatic flushing device
• Pneumatic hose, length 1.5m
• 2 threaded rods M12
• Fastening material
• Connection bend 90° made of PE-HD, ø 90mm
• Adaptor socket made of PE-HD, ø 90 / 110mm
• Cup for flush volume reduction 4.0 / 2.6l
