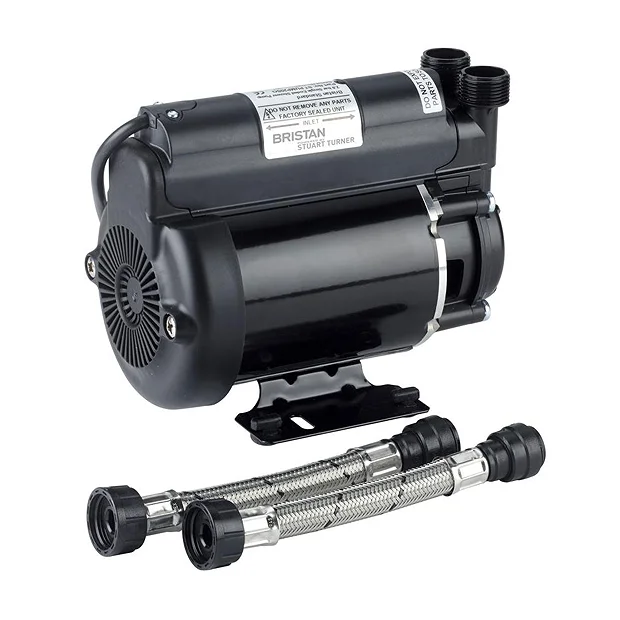

Bristan – 2.0 Bar Single Impeller Shower Pump

Bristan – 2.0 Bar Single Impeller Shower Pump – ST-PUMP20SG

Bristan shower pumps deliver a great showering experience and can be fitted to a mixer shower to boost water flow. Powered by Stuart Turner they offer improved quality and reliability and operates quietly. All pumps are WRAS and CE approved and come with a 2 year guarantee.

Product Details

• Product Code: ST-PUMP20SG
• Pump Type: Single speed single impeller
• Power Supply: 230 Volts AC
• Power Consumption: 215 Watts
• Inlet Connections: Flexible hose – 15mm push fit
• Outlet Connections: Flexible hose – 15mm push fit
• Pump Rating: 2.0 bar / 17 LPM
• Motor Rating: 30 minutes on / 30 minutes off
• Supply: Suitable for gravity systems only
• Max inlet head: 10 metres
• Max head (closed valve): 19 metres
• Max working pressure: 3.0 bar
• WRAS and CE approved

Additional Information

• Single impeller for boosting one water supply
• Fully automatic flow switch control – pump automatically starts when flow of water exceeds 0.8 litres per minute.
• Pump rated at 2.0 bar pressure equivalent to 20 metres head height.
• High boost performance
• Low noise – fitted with anti-vibration feet
• Min inlet water temperature – 4°C
• Max inlet water temperature – 65°C
• Max number of starts per hour – 60
• Max ambient air temperature – 40°C

FOR POSITIVE HEAD APPLICATIONS ONLY

Please note: Shower pumps should not be used on sealed systems (direct mains supply) including systems with a combi boiler.

2 Year guarantee
