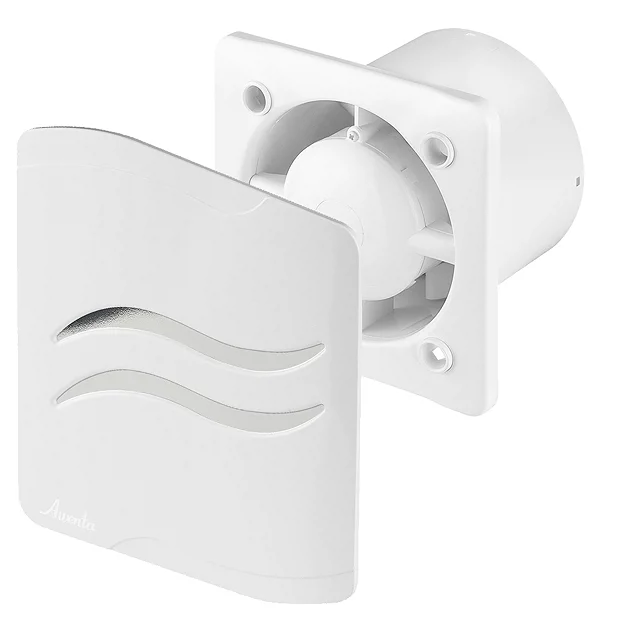

Arezzo 100mm Turbo Extractor Fan – Timer – S-Line Design

Arezzo 100mm Turbo Extractor Fan – Timer – S-Line Design

The unobtrusive Arezzo turbo high air exchange capacity bathroom extractor fan uses the latest technology to deliver you optimal performance, comes with elegant S-Line design front panel featuring a unique wavy pattern. Suitable for a wide variety of fittings such as walls, ceilings and panels.

The fan is switched on and off by means of a switch (not included in the device) being a part of the electrical installation of the building, but it will turn off after the time set by a potentiometer on the PCB has elapsed. The minimum delay is 3 minutes, the maximum – 30 minutes. Time delay adjustment is smooth.

Product Details

• Fan Housing Size: 130 x 130 x 88mm
• Front Panel Size: 160 x 160 x 26mm
• Hole Diameter: 100mm
• Front Panel Colour: White with Silver Insert (Painted)
• Panel Shape: Square
• High air exchange capacity
• Material: ABS plastic
• Ball bearings
• IPX4 – electrically safe for use in the bathroom
• Clever in-built timer
• Maximum operating temperature 40°C
• Installation Type: Wall / Ceiling
• Non-return valve (ZZ) usage ability
• Quiet operation – Only 36 decibels
• Air pressure PA: 40
• Airflow per hour: 119
• Standards: CE
• Wattage: 13

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 2 Year

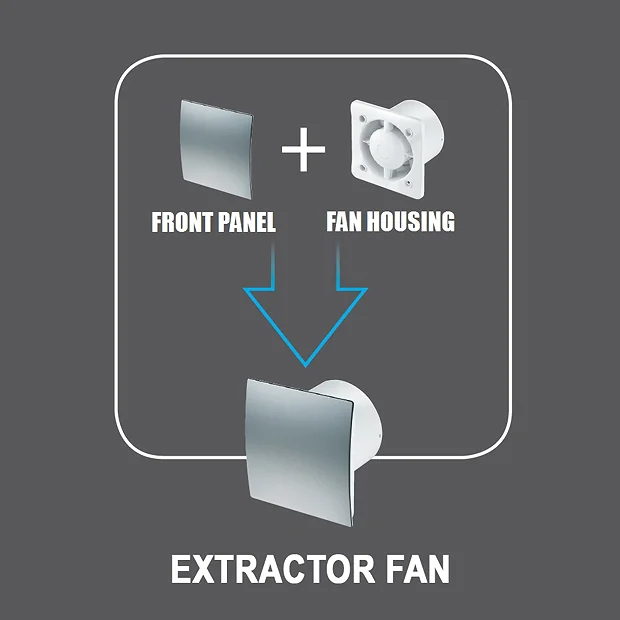

Comprises

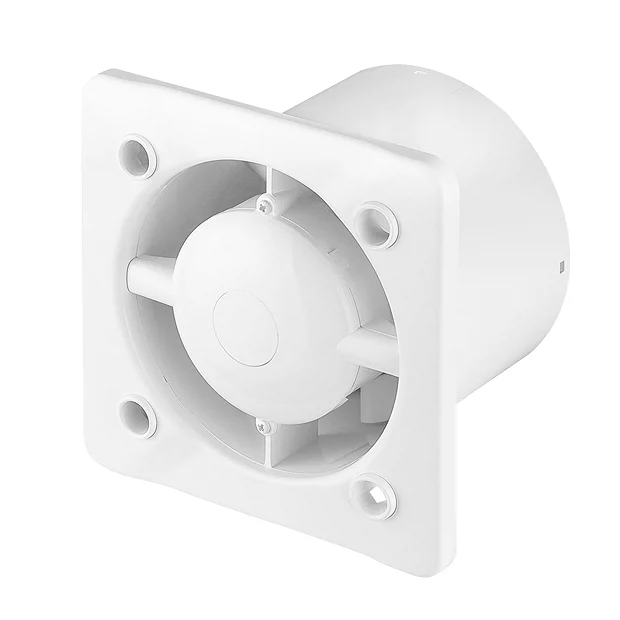

(1) 100mm Turbo Bathroom Fan Housing – Timer
(1) S-Line Design Front Panel – White with Silver Insert (Painted)
